Monte Carlo

TruePPM’s Monte Carlo simulation converts three-point task estimates into a probability distribution over the project finish date. Rather than a single deterministic finish from CPM, you get P50, P80, and P95 dates alongside the full distribution curve — a complete answer to “what is the chance we finish by date X?”

Edition

Monte Carlo is part of the Community (OSS) edition. The simulation runs in the standalone trueppm-scheduler engine (vectorized NumPy), so it has no Django dependency.

This capability is rare in open-source P3M tools. The sections below document exactly how it works so you can trust the numbers and explain them to stakeholders.

How to use it

Step 1 — Add three-point estimates to tasks

Open any task’s detail drawer and navigate to the Estimates section. Set all three values (working days):

Field	Meaning
Optimistic (O)	Duration if everything goes well — no blockers, best-case execution
Most Likely (M)	Your honest expected duration under normal conditions
Pessimistic (P)	Duration if significant problems occur — realistic tail risk, not fantasy

All three fields must be set for a waterfall task to be sampled from its three-point estimate. A waterfall task with any of the three missing is treated as having zero duration uncertainty: its deterministic duration is used for every simulation run.

Agile (Scrum) tasks are the exception — a task delivered as sprint work draws its uncertainty from team velocity rather than a three-point estimate, so it does not need O/M/P values set. See Agile tasks: velocity-based sampling below.

Focus your effort on critical path tasks. Tasks with float do not drive the finish date; uncertainty in their durations has little effect on the output.

Step 2 — Run the simulation

POST /api/v1/projects/<project_id>/monte-carlo/
Content-Type: application/json

{ "n_simulations": 1000 }

The n_simulations field is optional; it defaults to the server’s MC_SIMULATION_CAP setting (1,000 on OSS, unlimited on Enterprise). The endpoint is synchronous and fast — under 100 ms for a 200-task project at 10,000 runs.

The endpoint also enforces a task cap (MC_TASK_CAP, 5,000 on OSS): a project with more tasks than the cap returns HTTP 402 rather than running an unbounded simulation. The vectorized engine handles a 5,000-task × 1,000-run simulation in a few seconds; operators on constrained hardware can lower the cap, and Enterprise removes it.

Step 3 — Read the output

{
  "project_id": "...",
  "runs": 1000,
  "p50": "2025-11-14",
  "p80": "2025-12-02",
  "p95": "2026-01-08",
  "distribution": ["2025-10-21", "2025-10-22", "..."]
}

Field	Meaning
p50	50% of simulated runs finished on or before this date. Closest to the deterministic CPM date.
p80	80% of runs finished by this date. The standard commitment date for most project plans.
p95	95% of runs finished by this date. Use for contractual deadlines and hard external commitments.

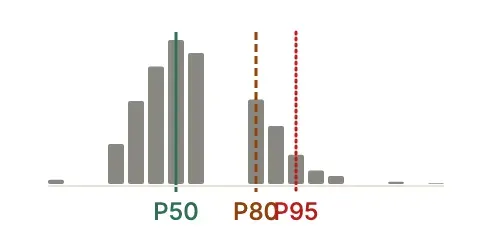

distribution	Full sorted list of all simulated finish dates. Use this to render a histogram or answer “what is the probability of finishing by date X?”

The most recent result is also available without re-running the simulation:

GET /api/v1/projects/<project_id>/monte-carlo/latest/

Forecast history

A single percentile date answers “when?” once. The more useful planning question is “is my confidence eroding?” — has the P80 finish slipped since you last looked?

As of 0.3 (ADR-0175), TruePPM persists every project-level Monte Carlo run so you can read finish-date drift over time: “my P80 was Aug 14 two weeks ago, now it’s Aug 28.” Each run is recorded with its P50/P80/P95 as of that moment, so the history is a true before/after, not just the latest snapshot.

The history will be available at:

GET /api/v1/projects/<project_id>/monte-carlo/history/

It will return persisted runs newest-first. Each run carries:

Field	Meaning
taken_at	When the simulation was run (ISO 8601).
p50 / p80 / p95	The percentile finish dates as of that run.
cpm_finish	The deterministic CPM spine at run time, for context.
n_simulations	Number of runs in that simulation.
task_count	Committed tasks included in that simulation.
delta	Per-percentile signed day change versus the immediately previous run (positive = the forecast slipped later). null on the oldest/baseline run.
triggered_by_name	Who ran the simulation — see the visibility note below.

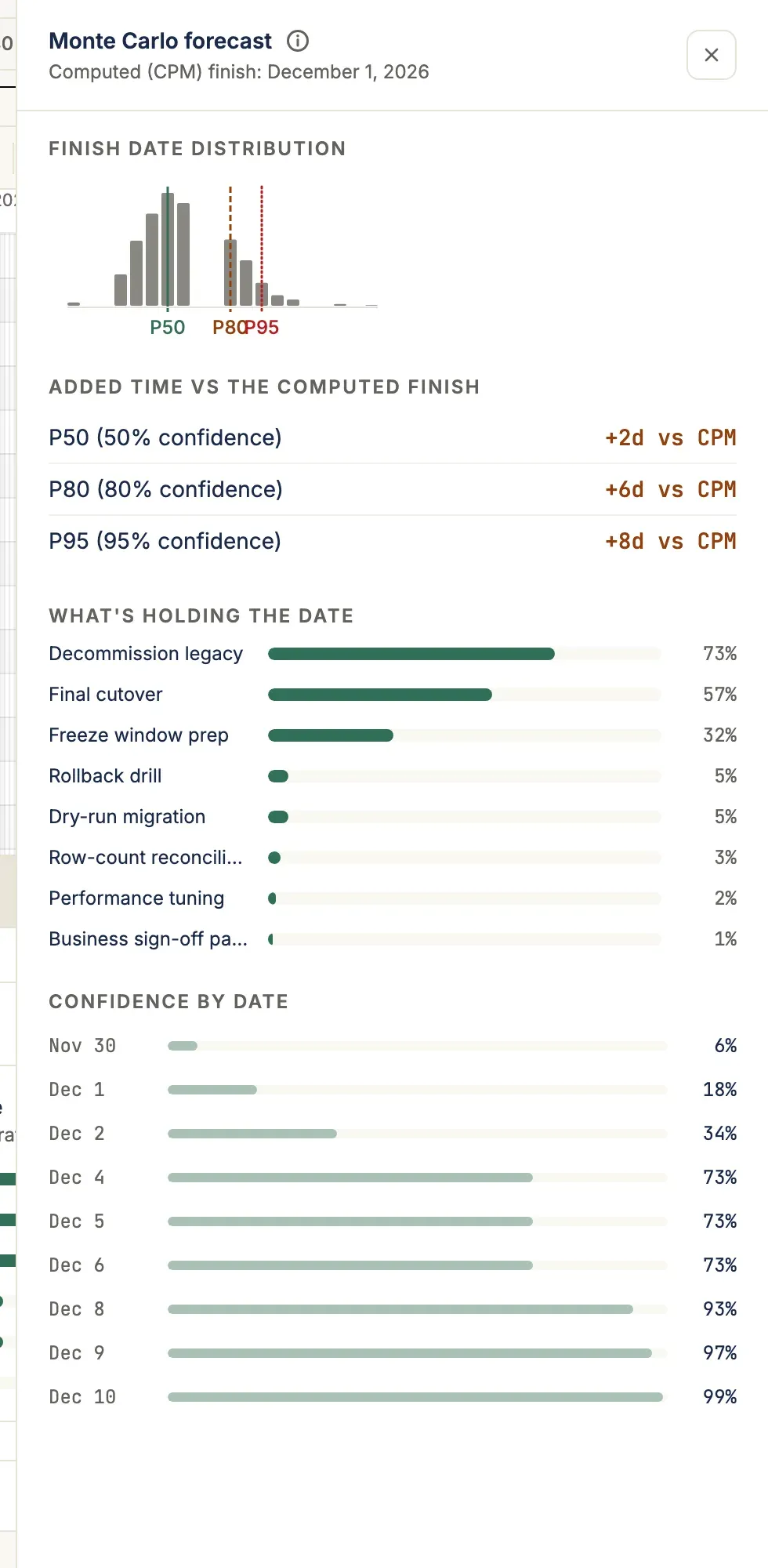

In the UI, the Monte Carlo drawer (and the mobile bottom sheet) will gain a collapsible Forecast history list showing each run with its per-run delta (for example, P80 ▲ +14d), so the drift is legible at a glance.

The latest-result endpoint (GET .../monte-carlo/latest/) will also fall back to this persisted history once the 24-hour cache has expired, so your most recent forecast survives past the cache rather than disappearing.

Attribution is Admin/Owner only

triggered_by_name will be returned only to project Admins and Owners. Every other member (Viewer and up) will see the drift values without the run-author name. This is deliberate: forecast drift is a planning signal about the project, not a performance signal about a person.

Forecast history is Community (OSS) edition and single-project scope. Rolling forecast drift up across programs or a portfolio is out of scope here and belongs to the Enterprise edition.

Retention

Consistent with the OSS cap philosophy (MC_SIMULATION_CAP, MC_TASK_CAP), OSS will keep the newest 100 runs per project (MC_HISTORY_CAP); a nightly job trims older runs. Enterprise sets the cap to None (unlimited history). 100 runs is ample to read multi-month drift on an actively re-forecast project.

What-if analysis

Forecast history answers “is my confidence eroding?” over time. The other planning question is forward-looking: “if this task slips a week, where does the whole forecast land?” — without actually changing the plan to find out.

Coming in 0.4 (#993), a non-mutating what-if endpoint will answer exactly that. Point it at one task, give it a duration change, and it will recompute CPM and Monte Carlo in memory and hand back the perturbed forecast — persisting nothing, so it is safe to call as many times as you like:

GET /api/v1/projects/<project_id>/monte-carlo/whatif/?task_id=<task_id>&duration_delta=5

Supply exactly one of:

Parameter	Meaning
duration_delta	Signed day offset applied to the task’s current duration (5 slips it a week later, -2 pulls it in).
new_duration	Absolute day count to set the task’s duration to (>= 0).

An optional n_simulations controls the iteration count (default and cap are the same MC_SIMULATION_CAP as a normal run). The response will carry:

Field	Meaning
current	The unperturbed forecast — p50/p80/p95, cpm_finish, and the critical_path (task IDs).
whatif	The same fields recomputed with your perturbation applied.
critical_path_changed	true when the perturbation moved which tasks are on the critical path.
delta_vs_current	Per-field signed calendar-day shift (p50/p80/p95/cpm_finish); positive = later/worse.
applied	The resolved perturbation (base_duration_days, duration_delta_days, new_duration_days).

Both forecasts sample with the same fixed RNG seed, so the delta isolates the effect of your change rather than run-to-run noise, and the same query always returns the same answer.

This is the endpoint behind the MCP whatif read tool: because it is a pure, side-effect-free GET, an AI client with a read-only token can ask “what happens to the Apollo forecast if design review slips two weeks?” and the CPM/Monte Carlo engine — not the model — computes the answer, server-side, on your own instance.

What-if analysis is Community (OSS) edition and single-project scope. Cross-program what-if belongs to the Enterprise edition.

Progress-aware forecasting

Added in 0.3

Progress-aware forecasting was added in the 0.3 release, available since the 0.3.0-alpha.1 pre-release (Jun 28, 2026).

As of 0.3 the forecast accounts for what is already done rather than re-simulating the project from its original start date every run. As work progresses, the simulation will:

• Pin completed tasks to their recorded actual finish dates instead of re-rolling their durations — finished work is a fact, not a probability.
• Sample only the remaining duration of in-progress tasks. A task that is 60% complete contributes the uncertainty of its last 40%, not its whole estimate.
• Anchor remaining work at a data date. Not-started and remaining work will be scheduled no earlier than the project’s status date, so the forecast never places future work in the past.

A new optional status_date field on the project (GET/PATCH /api/v1/projects/<id>/) will set that anchor. When it is left null the forecast defaults to today, so an actively-tracked project reads correctly with no extra configuration; a PM who wants a reproducible, frozen forecast for a report can pin an explicit date. The same progress signals will flow through the deterministic CPM schedule, so the Gantt bars and the Monte Carlo band stay consistent.

The math

PERT-Beta distribution

Each task’s duration is sampled from a PERT-Beta distribution, a standard technique for converting three-point estimates into a probability distribution. PERT is preferred over a triangular distribution because it gives more weight to the most-likely estimate, producing more realistic samples for human-estimated tasks.

The PERT mean and standard deviation are:

μ = (O + 4·M + P) / 6
σ = (P − O) / 6

The 4× weight on M is what makes PERT more conservative than a triangular distribution: the most-likely estimate pulls the mean strongly toward the center.

Note that σ is one-sixth of the full range. A task with O = 3, M = 10, P = 17 (a 14-day spread) has σ ≈ 2.3 days. This is by design — PERT encodes the assumption that extreme outcomes are genuinely unlikely.

Beta parameterization

The PERT distribution is a Beta distribution scaled to the interval [O, P]. Parameters α and β are derived by method-of-moments from the PERT mean and variance:

μ_norm  = (μ − O) / (P − O)         # normalize mean to [0, 1]
var_norm = σ² / (P − O)²            # normalize variance
κ       = μ_norm · (1 − μ_norm) / var_norm − 1
α       = μ_norm · κ
β       = (1 − μ_norm) · κ

Samples are drawn from Beta(α, β) and then scaled back to [O, P]:

duration_sample = O + Beta(α, β) · (P − O)

For the symmetric example O = 3, M = 10, P = 17, this produces Beta(4, 4) — a unimodal distribution centered at 10 days whose standard deviation in the scaled domain is exactly (P − O) / 6 = 2.33 days. The PERT approximation is exact for symmetric inputs.

Agile tasks: velocity-based sampling

A task delivered as Scrum work — delivery_mode = scrum with committed story_points — has no meaningful three-point duration estimate; its uncertainty comes from how much the team completes each sprint. For these tasks the simulation samples sprints-to-completion from the team’s velocity distribution instead of a PERT curve:

1. The completed-points totals from the team’s last eight closed sprints (excluding any sprint flagged exclude from velocity) form the velocity sample set.
2. Each run bootstraps that set with replacement, accumulating points sprint by sprint until the task’s story_points are burned down.
3. The number of sprints that took, multiplied by the team’s typical sprint length (converted to working days), is the task’s sampled duration for that run.

A faster team (high-throughput draws) finishes in fewer sprints; the slow tail needs more — so the spread reflects real velocity variability, the dominant source of schedule risk on agile work. This path takes precedence over a three-point estimate: a Scrum task that also carries O/M/P values still samples from velocity, because the delivery mode is an explicit declaration that uncertainty comes from throughput, not a duration guess.

A project with no usable velocity signal — no closed, velocity-eligible sprint with recorded completed points — falls back to each task’s deterministic duration, exactly as a waterfall task with no estimate does. So an agile project with no sprint history yet still simulates (to a single deterministic date) rather than failing.

Degenerate cases are handled explicitly:

• If P − O < 1e-9 (zero spread), all samples equal M.
• If the computed α or β is ≤ 0 (numerically degenerate input), all samples equal M.

CPM forward pass

The simulation pre-computes an (n_runs × n_tasks) duration matrix — all sampled durations for all runs — using vectorized NumPy operations. It then evaluates the CPM forward pass n_runs times in parallel, respecting all four dependency types (FS, FF, SS, SF) and lead/lag offsets. Working-day calendars are applied when converting numeric offsets back to finish dates.

Project finish for each run is max(early_finish) across all tasks. The full set of simulated finish dates is sorted to produce the percentile output.

At 10,000 runs on a 200-task project, the full simulation completes in under 100 ms on commodity hardware (Apple M-series or equivalent x86-64).

Why the Central Limit Theorem compresses your spread

When the critical path has many tasks, the project finish date is the sum of many sampled durations. By the Central Limit Theorem, the standard deviation of that sum grows as √n · σ_task, but the coefficient of variation (spread relative to the mean) shrinks as σ_task / (√n · μ_task). With ten tasks on the critical path each having σ = 2 days, the project-level σ is only √10 · 2 ≈ 6.3 days — much less than the 20 days you might naively expect from adding up individual ranges.

This is not a flaw. It reflects the real statistical property of summed uncertainty: diversification reduces relative risk. The implication is that P80/P95 divergence from P50 grows slowly with critical path length and is driven primarily by how genuinely pessimistic your P estimates are.

Known constraints

Statistical precision at low run counts

At 1,000 runs (OSS default), the P95 estimate is based on the top 50 samples. The binomial standard error on a P95 estimate at this sample size is roughly ±1.4 percentage points, meaning your “P95” line could realistically represent anywhere from P93 to P97. P80 is more stable (200 samples in the tail), and P50 is very stable (500 samples on each side).

For planning conversations where the tail matters, the Enterprise edition’s higher run cap produces meaningfully more stable P80 and P95 estimates.

Edition	Max runs	P50 stability	P80 stability	P95 stability
Community (OSS)	1,000	Good	Acceptable	Noisy (±1.4 pp)
Enterprise	Unlimited	Good	Good	Good at 10,000+

Task durations are sampled independently

Each task’s duration is sampled independently of every other task. In practice, risks are often correlated: a vendor delay, a key person out sick, or a weather event affects multiple tasks simultaneously. The simulation cannot model these shared risk factors, and independent sampling therefore underestimates tail risk in projects with strong correlated uncertainty.

Mitigation: If you know that several critical-path tasks share a common risk driver, widen their pessimistic estimates to reflect the scenario where that driver fires across all of them. This is a manual proxy for correlation, not a true joint distribution, but it moves the tail in the right direction.

No resource constraints

The CPM forward pass assumes unlimited resources: two tasks that are both earliest-feasible on the same calendar day are treated as fully parallel. If your project has a bottlenecked resource — a single specialist assigned to sequential critical-path tasks — the simulation will produce dates that are optimistic relative to the resource-leveled schedule.

Mitigation: Ensure your duration and three-point estimates reflect realistic resource availability, not theoretical parallel execution. If you have a resource-leveled CPM baseline, use its task durations as your M values.

P estimates must be genuinely pessimistic

A common mistake is setting P = M × 1.2 (20% contingency). PERT with σ = (P − O) / 6 means a P that is only slightly above M produces a very narrow distribution. The P estimate should represent a realistic bad scenario — a dependency that slips, an approval that takes twice as long, a technical problem that requires a rework cycle — not just a scheduling buffer.

A well-calibrated three-point estimate typically has P at 2–4× the O value, not 1.2× M.

OSS edition limits

Limit	OSS default	Enterprise
Max runs per request (MC_SIMULATION_CAP)	1,000	Unlimited
Max tasks per project (MC_TASK_CAP)	5,000	Unlimited
Max run history per project (MC_HISTORY_CAP, added in 0.3)	100	Unlimited

Both settings can be changed in settings/base.py (or a local override). The Enterprise package sets both to None (unlimited) in its settings include. Self-hosted OSS operators may set any integer or None in their local settings — the cap is advisory, not license-enforced.

Exceeding either cap returns HTTP 402 with a structured error body:

{
  "error": "simulation_cap_exceeded",
  "tier": "team",
  "message": "Simulation count exceeds the community-edition cap."
}

Interpreting results

Use P50 as your baseline. P50 is close to the deterministic CPM finish date. The gap between deterministic CPM and P50 is small and usually reflects the slight asymmetry in PERT distributions (a long right tail from pessimistic scenarios pulling the mean above the mode).

Use P80 as your commitment date. An 80th-percentile date is the standard for internal and stakeholder commitments in project management practice. It means you have a 4-in-5 chance of finishing on or before that date given your estimates.

Use P95 for hard external commitments. Contractual deadlines, public launch dates, and regulatory submissions warrant a 95th-percentile buffer. At OSS run counts the P95 value is noisy; run at the Enterprise edition’s higher cap for meaningful precision.

Do not commit to P50. A P50 date has a 50% probability of being missed by definition. Committing to it is equivalent to flipping a coin on every project.

Read the distribution, not just the percentiles. The distribution field contains every simulated finish date. A bimodal distribution — two clusters of simulated dates — usually signals that one or two tasks have extreme P estimates that dominate the tail. Investigate those tasks; they are your primary risk drivers.

Why is my forecast a single flat date?

When P50, P80, and P95 are identical, the simulation found no uncertainty to model — every run finished on the same day. This is correct when no committed task can vary the finish, but the cause is not always “missing estimates”. The result’s forecast_diagnostic field reports the reason, and the schedule view shows it in place of the distribution:

• Estimates awaiting approval — in Suggest & Approve estimation mode, three-point estimates do not feed the forecast until a Scheduler approves them (estimate_status = accepted). The estimates are visible on the tasks, but the forecast treats them as not-yet-trusted. Approve them to fold their range in.
• No estimate ranges — tasks carry only a single duration (or a degenerate range where optimistic = pessimistic). Add genuine optimistic/most-likely/ pessimistic estimates to the tasks you are unsure about.
• Agile work with no velocity history — story-point (Scrum) tasks sample from the team’s completed-sprint velocity rather than a duration range. Until at least one sprint has closed there is no distribution to draw from. Close a sprint and re-run.
• Estimated work off the critical path — your estimates vary, but the longest path runs through fixed-duration work, so the variance never reaches the finish. Estimate the tasks that actually drive the date (see What’s holding the date).
• All work complete, or nothing committed — finished tasks have no remaining work to vary, and backlog cards are excluded from the forecast entirely.
